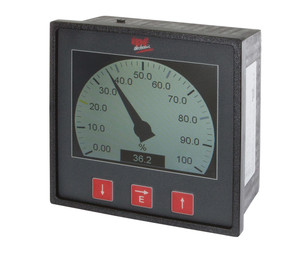

BA960900
Описание
Информация для заказа
Mechanical features | |
---|---|
Mounting method | Front mounting |
Height | 96mm |
Housing material | PPE |
Degree of protection (IP) | IP20 |
Width | 96mm |
Length | 114mm |
Ambient temperature | -20 - 50°C |
Electrical features | |
Voltage type | DC |
Display | LCD |
Max. switching capacity | 180W |
Max. switching current | 10A |
Analog input, current | yes |
Analog output, current | yes |
Type of analog output | 0 V ... 10 V / 4 mA ... 20 mA |
Type of switching output | Relay contact |
Rated control supply voltage Us at DC | 18 - 36V |
Relative measurement accuracy | 0.4% |
Short-circuit-proof | yes |
Initial value of measuring range, current | 0A |
Reverse polarity protection | yes |
Decay time | 20ms |
Transducer power supply voltage | 24V |
Resistance of current input | 50Ohm |
Voltage type of transducer power supply | DC |
Type of analog input | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
Power consumption | 5VA |
Max. output current | 6000mA |
Number of switching outputs | 4 |
USB interface | yes |
Analog input, voltage | yes |
Analog output, voltage | yes |
Type of electrical connection | Clamp |
Type of switching function | Normally open contact (NO) |
Setting procedure | Parameterization |
Max. continuous current | 6A |
Temperature drift | 0.1%/K |
End value measuring range, current | 0.02A |
Response time | 20ms |
Digital resolution | 14Bit |
Transducer power supply current | 35mA |
Resistance of voltage input | 100kOhm |
Characteristic curve deviation | 0.05% |
